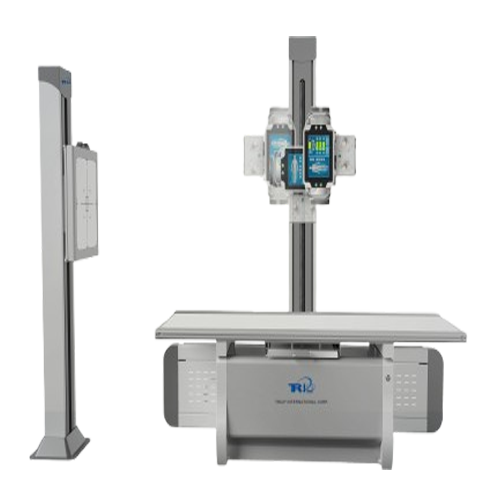

Model: TR-50N (10″ screen)
Features:
- With energy-storing device, can work properly at AC220V
- Simulation and digital double loop accuracy control method;
- High precision radiography time control;
- High precision tube current control;
- Kinds of setting modes for radiography conditions;
- Default self-protection, self-diagnosis;
- Lightweight and compact console has the setting of radiography parameters for adult and children’s body features in multi parts, multi positions and multi conformation.
- It operates easily and can be digital display.
- 48 Automatic program radiography
|
Model
|
TR-50N
|
|---|---|
|
Power supply
|
AC380V±10%,50/60Hz, or AC220V±10% (optional)
|
|
Working frequency
|
400kHz
|
|
Max. Power
|
Max. output power 50kW
|
|
X-ray tube component
|
Chinese tube (Canon for optional)
Rotating anode, Double focus: 0.6mm/1.2mm Anode Heat Storage Capacity: 300KHU |
|
Radiographic
|
kV:40kV~150kV
mA:10mA~630mA (AC380V) or mA:10mAs~500mA (AC220V) mAs: 0.1mAs-630mAs |
|
Exposure time range
|
0.002s~6.3s
|
|
Radiographic table
|
2100mm×825mm×655mm
Longitudinal movement range: ≥825mm, Horizontal movement range: ≥250mm |
|
Tube stand
|
Longitudinal movement range: ≥1575mm
Horizontal rotating range: ±180°, Vertical rotating range: ±90° Distance from focus spot to film: ≥1200mm, Locking way: Electromagnetic lock |
|
X-ray grid
|
Fixed, Grid density: 103L/Inch, Grid ratio: 10:1, Focus distance: 1000mm
|
|
Vertical cassette stand
|
Vertical Travel ≥1000mm and minimum floor to focus distance of ≤800mm,
The film size: no more than 17"x17", Bucky: f0-180cm, r=10:1, density: N=103L/Inch |
|
Optional:
Flat Panel detector,
achieve digital type (Only suit for model TR20N-DR) |
Wired Flat Panel Detector
Imaging medium: Csl Imaging size:17"x17" Pixel matrix: 3072x3072 A/D output: 16bits Pixel size: 139µm Spatial Resolution:3.6LP/mm Preview Image Time: <3s Full Image Time: <5s Trigger Mode: AED (Optional) /Software/Prep / / |
|
Optional:
Flat Panel detector,
achieve digital type (Only suit for model TR20N-DR) |
Wireless Flat Panel Detector
Imaging medium: Csl Imaging size:17"x17" Pixel matrix: 3072x3072 A/D output: 16bits Pixel size: 139µm Spatial Resolution:3.6LP/mm Preview Image Time: <3s Full Image Time: <5s Trigger Mode: AED / Software WIFI: 2.4G and 5G, IEEE802.11 a/b/g/n/ac Battery autonomy: 5hours |
